現如今的醫療機構都希望主動改善患者身份和醫療管理工作流程

逐漸普遍使用醫用掃描器

1.擁有高性能彩色面積成像，適用于醫療保健環境

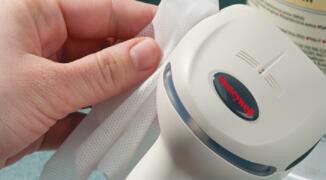

2.醫用級可消毒機身外殼采用耐用型構造，可以更好地抵御刺激性化學物質的有害影響也能提升病人舒適度體驗

3.無線技術可支持距離主機10M（33ft）范圍內的自由移動

實現效率的轉化

參數

Dimensions (LxWxH)

1900h: 104 mm x 71 mm x 160 mm (4.1 in x 2.8 in x 6.3 in)

1902h Scanner: 104 mm x 71 mm x 160 mm (4.1 in x 2.8 in x 6.3 in)

1902h Base: 132 mm x 102 mm x 81mm (5.2 in x 4.0 in x 3.2 in)

Weight

1900h: 147 g (5.2 oz)

1902h Scanner: 214 g (7.5 oz)

1902h Base: 179 g (6.3 oz)

ELECTRICAL

Input Voltage

1900h: 4 VDC to 5.5 VDC

OPERATING POWER

1900h: 2.3 W (450mA @ 5 VDC)

1902h Scanner: N/A

1902h Base:

Charging 5 W (1A @ 5V)

Non-Charging 0.5 W (0.1A @ 5 V)

Standby Power

1900h: 0.45 W (90mA @ 5 VDC)

1902h Scanner: N/A

1902h Base: N/A

Battery

1900h: N/A

1902h Scanner: 2400 mAh Li-ion minimum

1902h Base: N/A

Expected Operation Time

3820i: 16 hours

Expected Charge Time

3820i: 4 hours

Number of Scans

3820i: 57,000 scans per charge

Host System Interfaces

1900h: USB, Keyboard Wedge, RS232, IBM 46xx (RS485)

1902h Scanner: N/A

1902h Base: USB, Keyboard Wedge, RS232 TTL, IBM 46xx (RS485)

BLUETOOTH

1902h Radio/Range: 2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1: Class 2: 10m (33 ft) line of sight

1902h Radio/Range: Up to 1 Mbps

Operating Temperature

1900h: 0°C to 50°C (32°F to 122°F)

1902h Scanner: 0°C to 50°C (32°F to 122°F)

1902h Base:

Charging: 5°C to 40°C (41°F to 104°F)

Non-Charging 0°C to 50°C (32°F to 122°F)

Storage Temperature

1900h: -40°C to 70°C (-40°F to 158°F)

1902h Scanner:

up to 90 days: -20°C to 35°C (-4°F to 95°F)

up to 1 year: -20°C to 20°C (-4°F to 68°F)

1902h Base: -40°C to 70°C (-40°F to 158°F)

Humidity

0 to 95% relative humidity, non-condensing

Drop

Designed to withstand 50 1.8 m (6 ft) drops to concrete

Environmental Sealing

IP41

Light Levels

0 to 100,000 lux (9,290 foot-candles)

SCAN PERFORMANCE

Scan Pattern

Area Image (838 x 640) pixel array)

Motion Tolerance

Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus

Scan Angle

(HD): Horizontal 41.4°; Vertical 32.2°

Symbol Contrast

20% minimum reflectance difference

Pitch, Skew

±45°, ±65°

Decode Capability

65°, 65°

有意向購買或者需要咨詢 請聯系深圳市森茂科技有限公司 專業的醫用條碼設備 醫用條碼標簽專家 給您專業的指導意見及購買參考
