注：以上所標價格為含17%稅,不開票下浮10%,含運費（默認發快遞或物流,需要發其他方式運費另計，新疆，西藏等偏遠地區需要另加運費，拍前請聯系客服）

其他特殊規格可定制!

以上價格為BT防爆價格。

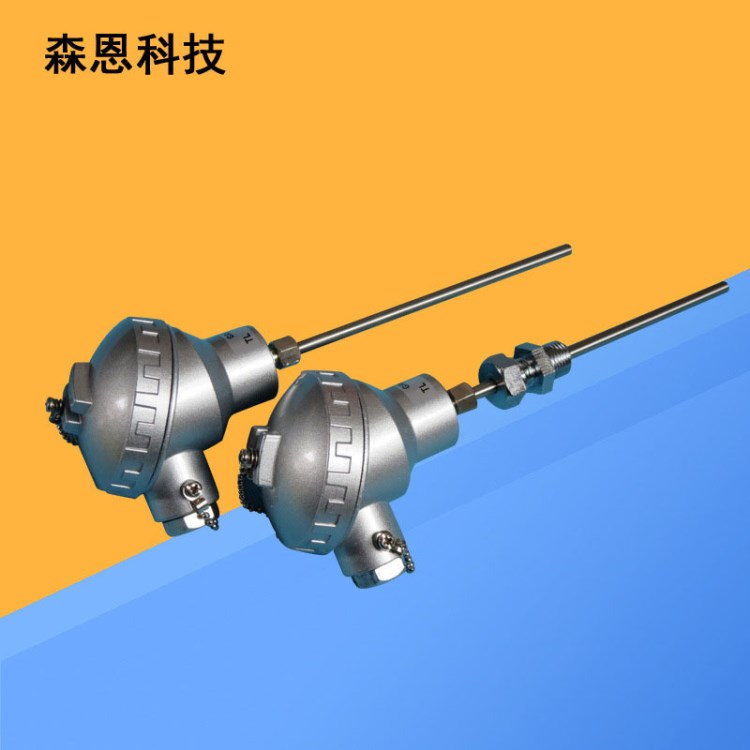

保護管為304不銹鋼，偶絲直徑2.5mm,高頻磁珠,接線板。

一、產品簡介 Product Brief

WR系列工業用隔爆、本安型熱電偶是一種溫度傳感器，在化學工業自控系統中應用極廣，通過溫度傳感器，可將控制對象的溫度參數變成電信號，傳遞給顯示、記錄和調節儀表，對系統實行檢測、調節和控制。

WR Series For industrial use Flameproof, Intrinsically safe type thermocouple Is a kind of temperature sensor, In the chemical industry in the automatic control system of wide application, Through the temperature sensor, Can put the control object The temperature parameter to electrical signal, Transferred to display, record and control instrument, On the system The implementation of inspection, regulation and control.

在化工廠，生產現場常伴有各種易燃、易爆等化學氣體、蒸汽，如果使用普通的熱電偶非常不安全，極易引起環境氣體爆炸。因此，在這些場合必須使用隔爆或本安型熱電偶作溫度傳感器，本公司生產隔爆或本安型熱電偶產品適用在EX dIICT1~dIICT6溫度組別區間內具有爆炸氣體危險的場所內。

In the chemical plant, The production site is often accompanied by a variety of flammable, Explosive chemical gas, Steam, If using the ordinary thermocouple very unsafe, Extremely easy to cause environment gas explosion. Therefore, In these situations must use flameproof Or intrinsically safe type thermocouple as temperature sensor, The company production of Flameproof Or intrinsically safe type thermocouple products Applicable in EX dIICT1~dIICT6 Temperature group interval With explosive gases in dangerous places.

本公司生產的隔爆或本安型熱電偶技術性能符合ZBN11002-2010工業熱電偶技術條件和ZBY300-2010工業熱電偶分度表及允許誤差，同時產品均符合爆炸性環境用防爆電氣設備通用要求GB3836.1~2010、GB3836.2-2010標準，由儀器儀表防爆安全監督檢驗站對產品的圖樣、技術文件、樣機進行專門審定和批準，并以給防爆合格證，隔爆熱電偶合格證號：CNEx14.2076X。

The company production of Flameproof Or intrinsically safe type thermocouple Technical performance in line with ZBN11002-2010 Industrial thermocouple Technology conditions And ZBY300-2010 Industrial thermocouple indexing table And permissible error, At the same time product Accord with the used in explosive environment Explosion proof electrical equipment General requirements GB3836.1~2010、GB3836.2-2010 Standard, By the national Explosion-proof instrument of safety supervision and inspection station On the product pattern, Technical documents, Prototype Special Examination and approval, And to give the explosion-proof certificate, Explosion proof thermocouple certificate no.: CNEx14.2076X。

本安型熱電偶必須使用本安補償導線，其分布參數控制范圍：總電感量≤2mH，電容量≤0.06μ，同時使用關聯設備安全柵，關聯設備的選用按下原則，熱電偶(必須是絕緣式)配二次儀表時，必須選用FB系列安全柵，安全柵的具體接線見具體產品的說明書。

Intrinsically safe type thermocouple You must use the intrinsically safe compensation wire, The distributed parameter control range: The total inductance ≤2mH，Capacitance≤0.06μ，At the same time, the use of Associated equipment safety gate, The device context Selection Press the principle, Thermocouple(must be insulated type) With two instruments, Must be selected FB series of safety barrier, Safety grid Specific wiring See specific product specifications.

二、原理結構 The principle structure

隔爆或本安熱電偶與裝配式熱電偶的結構，原理基本相同，所區別的是，隔爆或本安型產品接線盒(外殼)在設計上采用防爆特殊結構，接線盒用高強度鋁合金壓鑄而成，并具有足夠的內部空間、壁厚和機械強度，橡膠密封圈的熱穩定性均符合防爆標準。所以，當接線盒內部的爆炸性混合氣體發生爆炸時，其內壓不會破壞接線盒，而由此產生的熱能不能向外擴散—傳爆。

Flameproof Or intrinsically safe thermocouple And the assembly type thermocouple Structure, The same basic principles,The difference is, Flameproof Or intrinsically safe product Junction box (shell) In the design of the Explosion proof special structure, Wiring box for high strength aluminum alloy die-casting and, And has sufficient internal space, Wall thickness and mechanical strength, The rubber sealing ring Thermal stability Are in line with national standards for explosion proof. So, When the wiring inside the box Explosive gas mixture When the explosion, The inner pressure Will not damage the junction box, The resulting Heat energy can not be outward diffusion of detonation.

由于產品采用上述防爆特殊結構，使產品完全符合使用在dIIBT4至dIICT6、ibBT4、iaIICT6防爆類別范圍內，只要用戶嚴格遵守產品使用規則，產品就能達到的防爆效果。

Because the product uses The explosion-proof special structure, The product fully meets the use in dIIBT4 To dIICT6、ibBT4、iaIICT6 Explosion proof class scope, As long as the user Products in strict compliance with the rules of use, The product can achieve reliable Explosion proof effect.
